Osburn OB02028K Matrix Wood Insert With Connector And Liner Kit
Osburn OB02028K Matrix Wood Insert With Connector And Liner Kit - Image 2
Osburn OB02028K Matrix Wood Insert With Connector And Liner Kit - Image 3

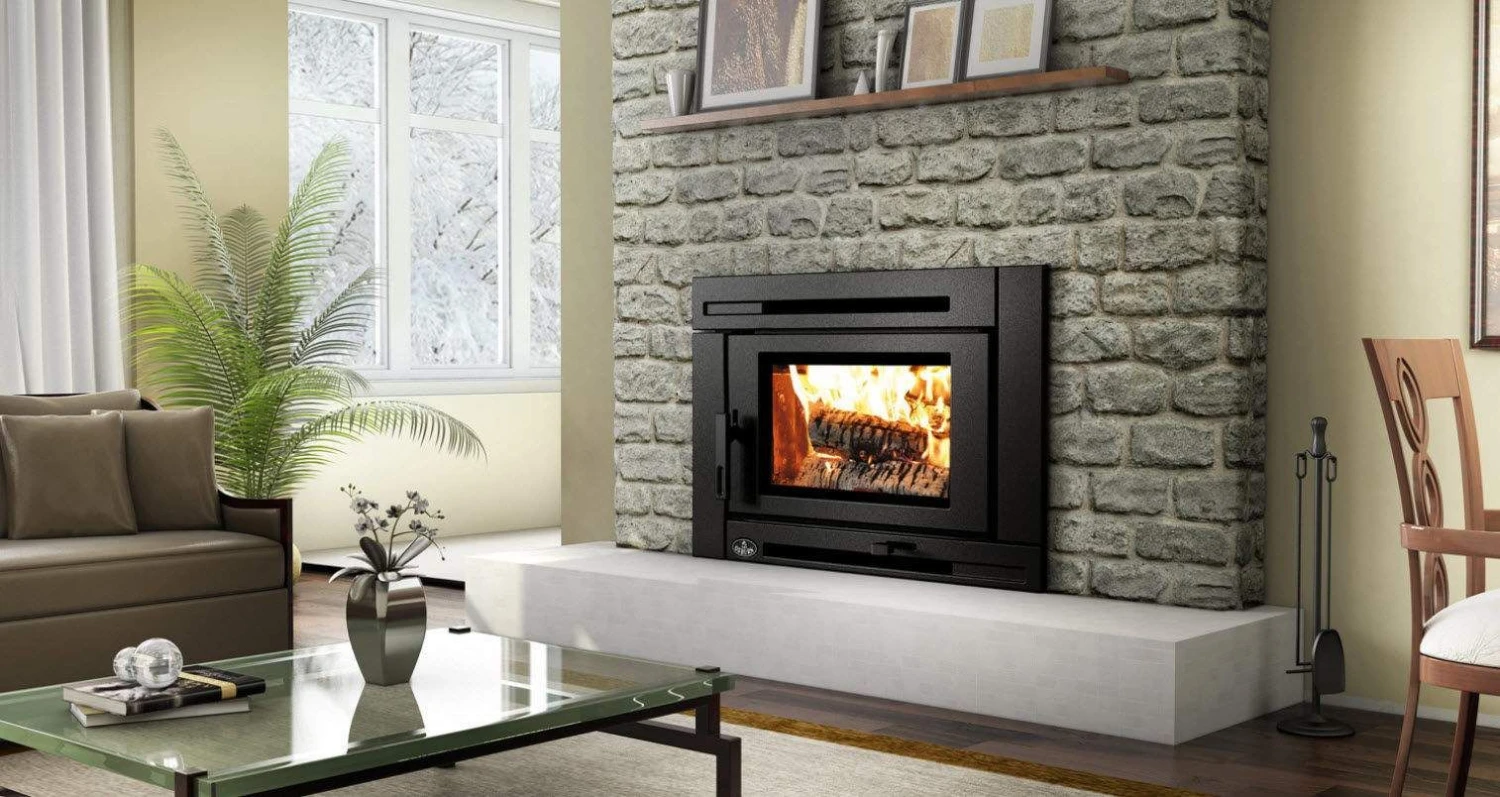

Osburn OB02028K Matrix Wood Insert With Connector And Liner Kit -Heating Equipment Store ob02021 1

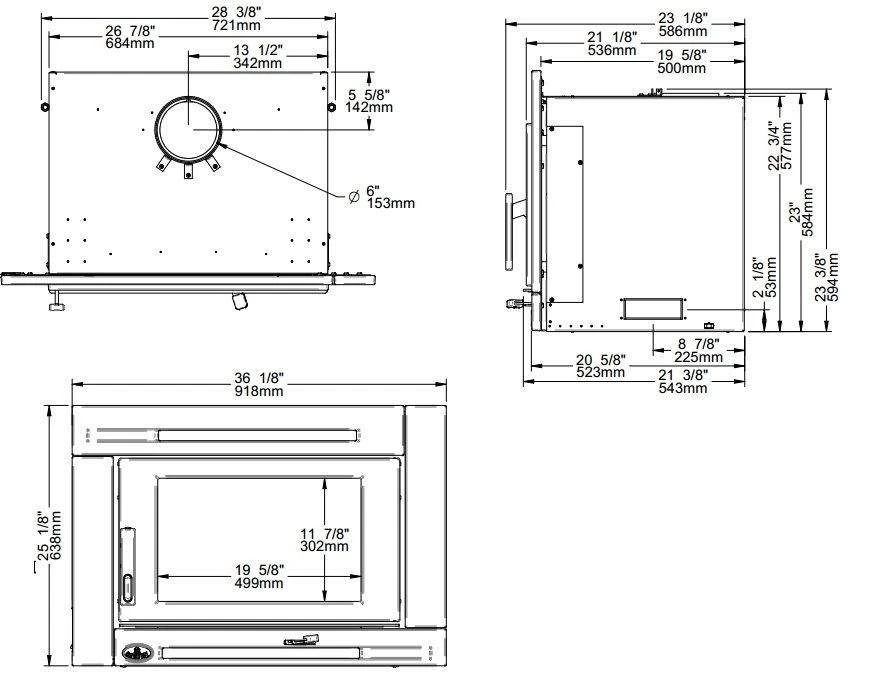

Osburn OB02028K Matrix Wood Insert With Connector And Liner Kit -Heating Equipment Store ob02021 specs 1

Osburn OB02028K Matrix Wood Insert With Connector And Liner Kit

$318.00 Original price was: $318.00.$99.99Current price is: $99.99.

Buy Now
SKU: ZMLYZ 1702727514 Categories: Wood Fireplace Inserts, Wood Fireplaces Tag: Osburn
  • Free 1 year warranty period
  • Quality Meets Affordability
  • Top-Notch Quality
  • There are quality problems, free return and exchange
Browse
  • Electric Fireplaces
    • Built-In Electric Fireplaces
    • Electric Fireplace Inserts
    • Electric Fireplace Mantel Packages
    • Wall Mount Electric Fireplaces
  • Fireplace Accessories
    • Firebacks
    • Fireplace Blower Kits
    • Fireplace Enhancements
    • Fireplace Maintenance
    • Fireplace Mantels
    • Fireplace Remote Controls
    • Fireplace Screens & Fronts
    • Fireplace Service Parts
    • Fireplace Tool Sets
    • Gas Valve Kits
    • Log Lighters
  • Gas Fireplaces
    • Built-In Gas Fireplaces
    • Gas Fireplace Inserts
    • Gas Fireplace Stoves
  • Gas Log Sets
    • Electric Log Sets
    • Fire Glass Sets
    • Gas Log Burners
    • Logs Only
    • See-Through Gas Log Sets
    • Vent-Free Gas Log Sets
    • Vented Gas Log Sets
  • Outdoor Fireplaces
  • Uncategorized
  • Wood Fireplaces
    • Built-In Wood Fireplaces
    • Pellet Stoves
    • Wood Fireplace Inserts
    • Wood Fireplace Stoves
  • Description
  • Additional information
  • Reviews (0)
Product Overview

Osburn OB02028K Matrix Wood Insert with Connector and Liner Kit offers a high-end wood log insert designed for maximum heat output and efficiency, paired with a smart Forever Flex chimney liner kit for added value. One of the most innovative Osburn units, the Matrix Insert is able to heat a large area and includes a powerful blower to increase heat circulation. The Osburn Matrix is an EPA-certified appliance with an efficiency rating of 77%. The well-designed unit features a firebox lined with refractory bricks for more even heat distribution while the stainless steel secondary air system improves gas combustion and reduces harmful gas emission.

The approximate heating area ranges from 500 – 2,100ft² while the unique design also creates an automatic glass “air wash” system that keeps the glass door clean without any additional effort. The heavy duty carbon steel construction ensures a high-quality and durable product while the metallic black color integrates into any room’s decor.

Features

  • Black Metallic carbon steel construction for long-term durability
  • EPA-certified appliance with a 77 percent efficiency rating, 1.54 g/h emissions rate
  • Heavy duty ceramic bricks provide better, more even heat distribution
  • Vacuum design creates efficient combustion to prevent creosote build-up on the glass door
  • Includes Forever Flex chimney liner system
UPC

773388174099

Manufacturer

Osburn

Mobile Home Approved

No

Manufacturer Part Number

OB02028K

Recommended Heating Area (sq. ft.)

500 – 2,100

Door Type

Single, glass with cast iron frame

Glass Surface

19.675-Inches X 11.875-Inches

Glass Viewing Area (sq. in.)

233

Glass Type

Ceramic

Opening Width (Inches)

17.5

Opening Height (Inches)

8.75

Ash Drawer

No

Blower Kit Available

Yes

Burn Time

5 – 8 hrs

Max Output - EPA test wood

28,600 BTU/h

Overall - Depth

23.175-Inches

Overall - Width

36.175-Inches

Overall - Height

25.25-Inches

Firebox - Depth

16.75-Inches

Firebox - Width

21-Inches

Firebox - Height

12-Inches

Firebox - Volume (sq. ft.)

2.4

Baffle

High heat-resistant C-cast

Combustion Technology

Non-Catalytic

Maximum Log Length (Inches)

20

Log Positioning

Over width

Steel Thickness (Top)

5/16-Inches

Centre line of flue outlet to the back

5.675-Inches

Centre line of flue outlet to the side

13.5-Inches

Combustible side wall to unit

16-Inches

Combustible shelf to unit (US)

27-Inches

Combustible top mantle to unit

27-Inches

Combustible side mantle to unit

9-Inches

Minimum Fireplace Opening - Width

28.875-Inches

Minimum Floor Protection (Front of Unit)

16-Inches USA / 18-Inches CAN

Minimum Fireplace Opening - Height

23.75-Inches

Minimum chimney height (feet)

12

Type of Chimney (°F)

2100

Recommended Chimney Diameter

6-Inches

Optimum Efficiency (%)

70

Emissions (g/h)

1.54

Warranty-ws

Limited Lifetime

Tested or/and listed as per applicable standards by

Interlek

Fuel Type

Wood

Weight (Pounds)

510

Overall Width (Inches)

36.175

Overall Height (Inches)

25.25
